ZD-6 (3P) LED down lamp

LED lamp is a supporting product of drum washing machine.It is used to lighting when put clothes into the washing machine.

Model	ZD-6(3P)
Power	0.3W
Voltage	DC5.0V
Drive method	Constant current drive
Color temperature / wavelength	3000/4000/5000/6000K blue light 460-470nm, green light 520-530nm, red light 620-640nm
Luminous flux	25-36LM 4-8LM 15-25LM 5-10LM
Color rendering index	Ra≥80
Material	PC
IP level	IP65
Connector	2P/3P

Working Environment

◎Working temperature: -30℃～45℃

◎Humidity: 5%～95%RH

◎Storage temperature: -30℃～50℃

◎No gas, steam, chemical deposits, dust, dirt and explosive corrosive media that seriously affect electrical insulation in the installation site.

◎No severe vibration or bumps in the installation site.

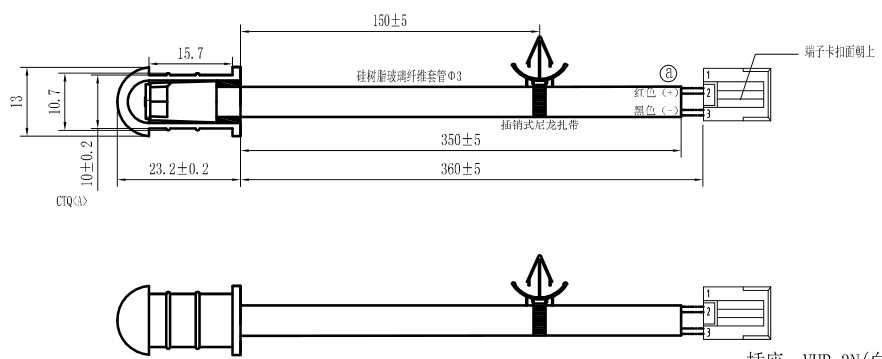

Dimension
